מצלמת גוף ללא עדשה 8MP,
מסדרת Basic,
WDR120DB,
יציאת BNC.
איכות תמונה
רזולוציה 8MP במצלמת UNV מקצועית
עדשה וכיסוי
גוף ללא עדשה, ללא עדשה, תושבת C/CS
טווח דינמי
120 dB
התאמה להתקנה
מצלמת גוף להתקנה עם עדשה מתאימה
מצלמת גוף ללא עדשה 8MP, מסדרת Basic, WDR120DB, יציאת BNC.
| מותג | UNV |
|---|---|
| דגם | IPC568EB-DGK-I0 |
| מק״ט ספק | 32323568001 |
| סדרה | Basic |
| רזולוציה | 8MP |
| מבנה | גוף ללא עדשה |
| עדשה | ללא עדשה, תושבת C/CS |
| דחיסה | Ultra 265 |
| WDR | 120 dB |
| שמע | X |
| כניסות/יציאות שמע | 1/1 |
| מגעים יבשים | 2/1 |
| PoE | Yes |
| כרטיס MicroSD | Yes |
| מצב מסדרון | No |
| כפתור אתחול | Yes |
| זרוע קיר | TR-WM06-C-IN |
| מתאם לעמוד | TR-UP06-IN |

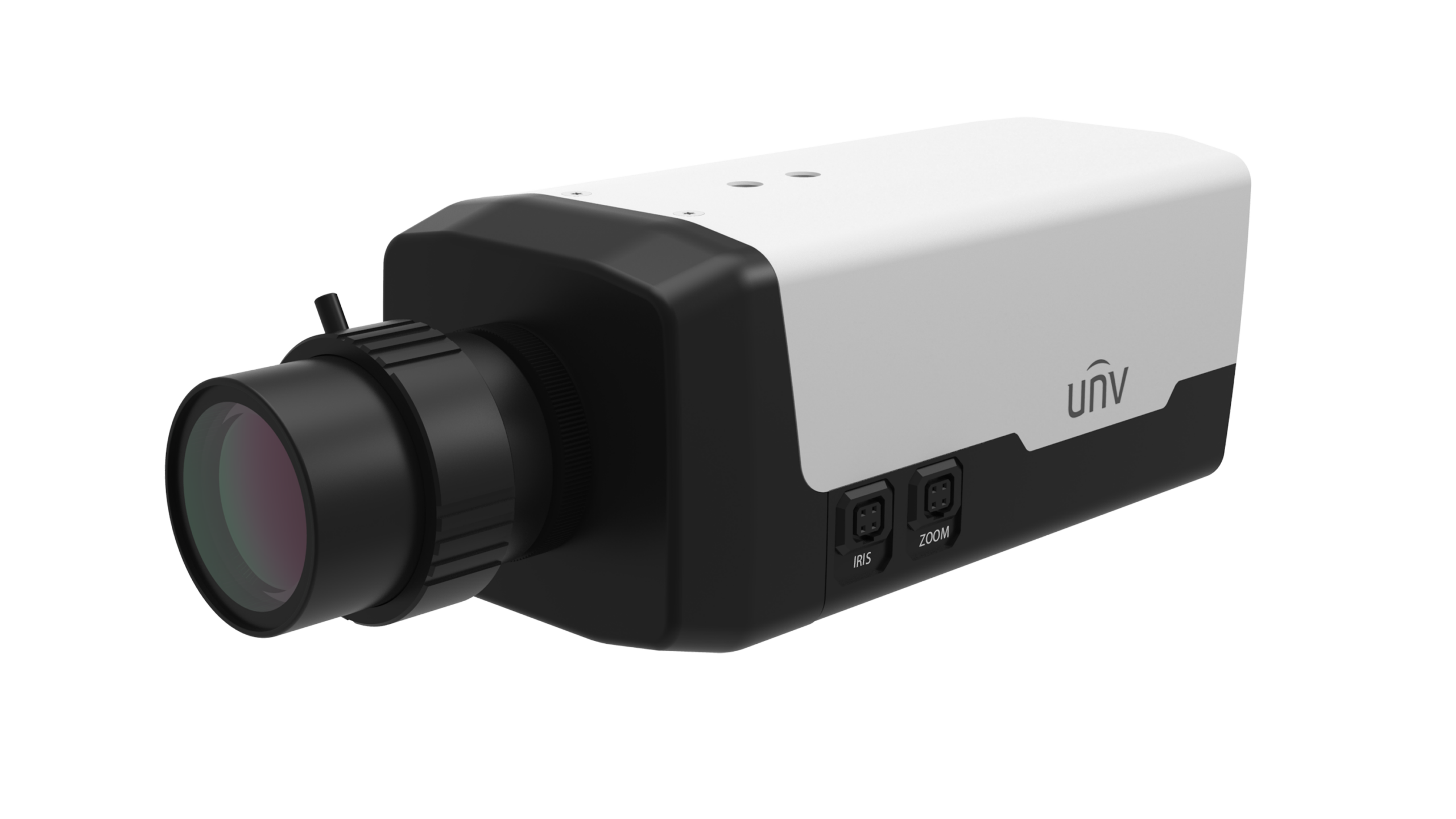

8MP LightHunter IR Box Network Camera
| Camera | |
|---|---|
| Max Resolution | 8 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.002 Lux (F1.2, AGC ON), BW: 0.0002 Lux (F1.2, AGC ON) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
| Lens | |
| ABF | Support |
| Lens Mount | C/CS |
| Iris Type | DC-iris/P-iris |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| Privacy Mask | Up to 4 areas |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 30 fps |
| Frame Rate-Sub Stream | 720P (1280 × 720), max. 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps |
| Intelligent | |
| Exception Detection | Object removed, Object Left Behind, Scene change |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Road Traffic | Support capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode available: High/Low pole |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog, Optical defog |
| Heatwave Reduction | N/A |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| UMD (Ultra Motion Detection) | Support |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP |
| Video Output | 1 BNC (for debugging) |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| General | |
| Power | DC 12 V (±25%), AC 24 V (±25%), PoE (IEEE 802.3af) |
| Power Consumption | Max. 8 W |
| Power Interface | Two-core terminal block |
| Dimensions | 152 mm × 71 mm × 65 mm (6.0" × 2.8" × 2.6") (L × W × H) (excluding the lens) |
| Weight | 0.40 kg (0.88 lb) |
| Working Environment | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| RTC | Support |
| Material | Metal |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Live View | |
| Maximum Bitstream | 35 |
| Configurable | |
| P/N | Support |
| מותג | UNV |
|---|---|
| רזולוציית צילום | 8MP |
| סוג מוצר | מצלמת IP |
| סדרה | Basic |
