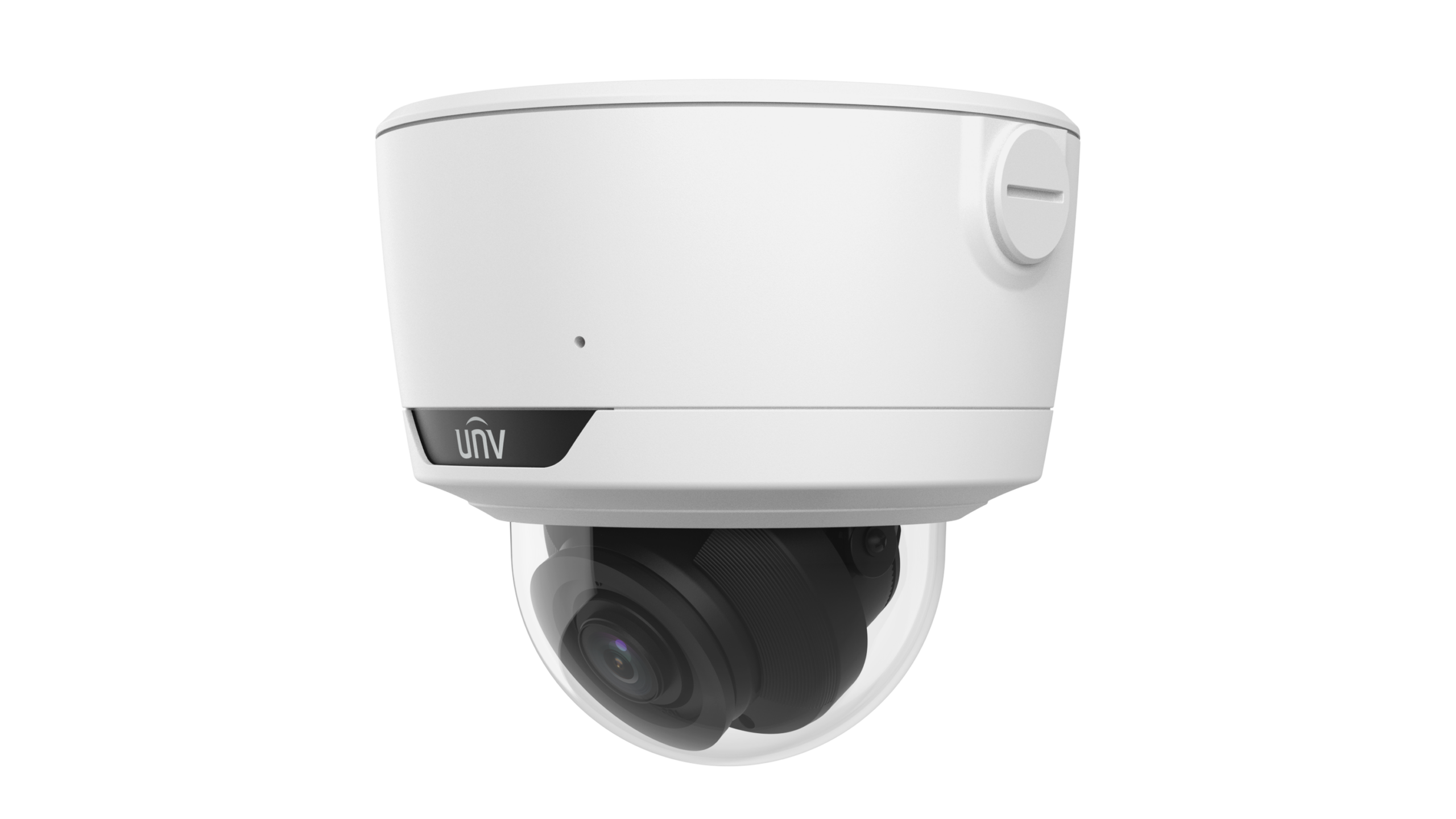

מצלמת IP חופה 4MP UNV עם עדשה 2.7-13.5mm דגם IPC3734SS-ADZK-I1

Name: מצלמת IP חופה 4MP UNV עם עדשה 2.7-13.5mm דגם IPC3734SS-ADZK-I1 | סיבים
Brand: Uniview
SKU: IPC3734SS-ADZK-I1

צור קשר למחיר

מק"ט IPC3734SS-ADZK-I1 קטגוריה מצלמות IP תגיות 4MP, IPC3734SS-ADZK-I1, Prime-II, UNV, חופה, מצלמת IP מותג: Uniview

תיאור מצלמת IP חופה 4MP UNV עם עדשה 2.7-13.5mm דגם IPC3734SS-ADZK-I1

מצלמת חופה 4MP לתנאי חוץ,
מסדרת Prime-II,
עדשה חשמלית 2.7-13.5 מ"מ,
תאורת לילה: IR ל40 מטר,
WDR130DB, מיקרופון מובנה.

מה מיוחד ב-IPC3734SS-ADZK-I1?

איכות תמונה

High quality image with 4 MP, 1/3.0" CMOS sensor

יכולות וידאו

4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

אנליטיקה חכמה

Ultra 265, H.265, H.264, MJPEG

ביצועים מקצועיים

Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection

מצלמת IP חופה 4MP UNV עם עדשה 2.7-13.5mm דגם IPC3734SS-ADZK-I1

מצלמת חופה 4MP לתנאי חוץ, מסדרת Prime-II, עדשה חשמלית 2.7-13.5 מ"מ, תאורת לילה: IR ל40 מטר, WDR130DB, מיקרופון מובנה.

מפרט טכני

מותג	UNV
דגם	IPC3734SS-ADZK-I1
מק״ט ספק	32323373401
סדרה	Prime-II
רזולוציה	4MP
מבנה	חופה
סוג עדשה	חשמלית
עדשה	2.7-13.5mm
מיגון	IP67&IK10
תאורת לילה	IR 40m
דחיסה	Ultra 265
WDR	130dB WDR
שמע	√
כניסות/יציאות שמע	1/1
מגעים יבשים	1/1
PoE	Yes
כרטיס MicroSD	Yes
מצב מסדרון	Yes
כפתור אתחול	Yes
קופסת חיבורים	קופסת חיבורים מובנית בגוף המצלמה
זרוע קיר	TR-WM04-IN-V2
מתאם לעמוד	TR-UP06-C-IN-V2
מתאם פינתי/תקרה	TR-UC08-C-V2

English Description

4MP LightHunter VF IR Dome Network Camera

High quality image with 4 MP, 1/3.0" CMOS sensor
4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Intelligent people flow counting and crowd density monitoring
Smart intrusion prevention with color retrieval
ASM (auto scene match)
LightHunter technology ensures ultra-high image quality in low illumination environment
130 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Alarm I/O: 1/1, audio I/O: 1/1, built-in mic
Smart IR, up to 40 m (131.2 ft) IR distance
MicroSD, up to 512 GB
IK10 vandal resistant and IP67 protection

Official UNV Technical Specifications

Camera
Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 3° to 360°, Tilt: 0° to 68°, Rotate: 3° to 360°
S/N	>56 dB
WDR	130 dB
Lens
Focal Length	2.7 to 13.5 mm
Iris Type	Fixed
Iris	F1.2
Field of View (H)	103.8° to 29.7°
Field of View (V)	56.7° to 16.7°
Field of View (D)	108.3° to 33.7°
Lens Type	Motorized
DORI
DORI Distance (Lens)	2.7 to 13.5 mm
DORI Distance (Detect)	60.8 m to 303.8 m (199.5 ft. to 996.7 ft)
DORI Distance (Observe)	24.3 m to 121.5 m (79.7 ft. to 398.6 ft)
DORI Distance (Recognize)	12.2 m to 60.8 m (40.0 ft. to 199.5 ft)
DORI Distance (Identify)	6.1 m to 30.4 m (20.0 ft. to 99.7 ft)
Illuminator
Supplemental Light	IR
Illumination Distance (IR)	40 m (131.2 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Auto Scene Match (ASM)	Support (only WDR)
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis	N/A
People Counting	Support people flow counting and crowd density detection
Attribute Collection	SIP with color retrieval
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression	G.711U, G.711A, AAC-LC
Audio Bitrate	G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 8.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø162 mm × 149 mm (Ø6.4" × 5.9") (Ø × H)
Weight	1.36 kg (2.99 lb)
Material	Metal
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese

Official UNV product page

מידע נוסף

מותג	UNV
רזולוציית צילום	4MP
עדשה	עדשה משתנה
אורך מוקד עדשה	2.7-13.5 מ"מ
ראיית לילה	40 מטר
סדרה	Prime-II
