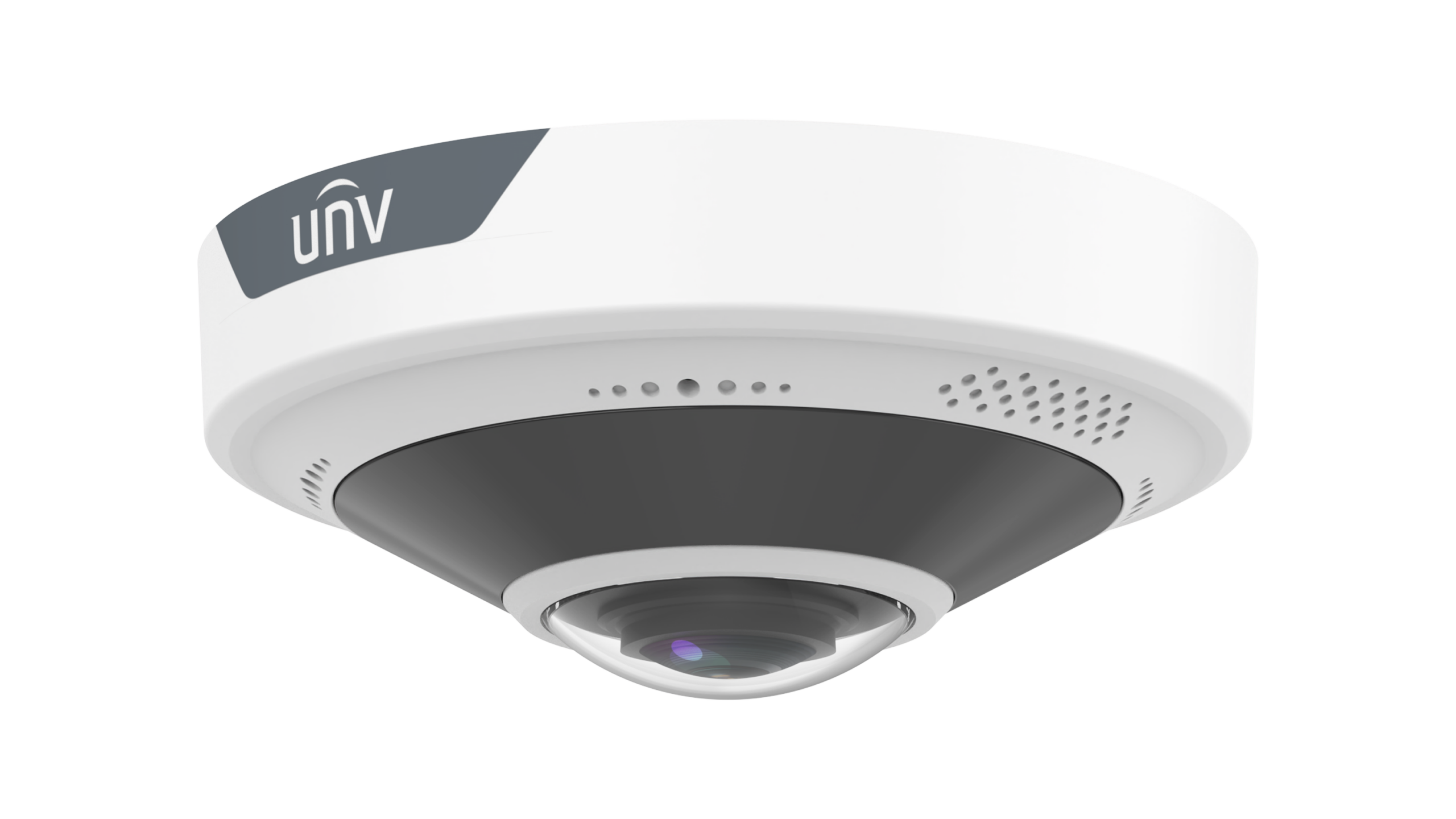

מצלמת IP חופה 6MP UNV עם עדשה 1.6mm דגם IPC816SB-ADF16KMC-I1

Name: מצלמת IP חופה 6MP UNV עם עדשה 1.6mm דגם IPC816SB-ADF16KMC-I1 | סיבים
Brand: Uniview
SKU: IPC816SB-ADF16KMC-I1

צור קשר למחיר

מק"ט IPC816SB-ADF16KMC-I1 קטגוריה מצלמות IP תגיות 6MP, IPC816SB-ADF16KMC-I1, Prime-I, UNV, חופה, מצלמת IP מותג: Uniview

תיאור מצלמת IP חופה 6MP UNV עם עדשה 1.6mm דגם IPC816SB-ADF16KMC-I1

מצלמת כיפה פאנורמית 360° 6MP לתנאי חוץ,
מסדרת Prime-I,
עדשה קבועה 1.6 מ"מ,
תאורת לילה: IR ל15 מטר,
WDR120DB, מיקרופון וספיקר מובנים.

מה מיוחד ב-IPC816SB-ADF16KMC-I1?

איכות תמונה

High quality image with 6 MP, 1/2.5" CMOS sensor

יכולות וידאו

Max. 2560 × 2560 resolution

אנליטיקה חכמה

Ultra 265, H.265, H.264, MJPEG

ביצועים מקצועיים

Supports Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes

מצלמת IP חופה 6MP UNV עם עדשה 1.6mm דגם IPC816SB-ADF16KMC-I1

מצלמת כיפה פאנורמית 360° 6MP לתנאי חוץ, מסדרת Prime-I, עדשה קבועה 1.6 מ"מ, תאורת לילה: IR ל15 מטר, WDR120DB, מיקרופון וספיקר מובנים.

מפרט טכני

מותג	UNV
דגם	IPC816SB-ADF16KMC-I1
מק״ט ספק	32323816016
סדרה	Prime-I
רזולוציה	6MP
מבנה	חופה
סוג עדשה	קבועה
עדשה	1.6mm
מיגון	IP67&IK10
תאורת לילה	IR 15m
דחיסה	Ultra 265
WDR	120dB WDR
שמע	MIC&Speaker
כניסות/יציאות שמע	1/1
מגעים יבשים	1/1
PoE	Yes
כרטיס MicroSD	Yes
מצב מסדרון	No
כפתור אתחול	Yes
קופסת חיבורים	TR-JB03-H-IN-V2

English Description

6MP Fisheye Dome Network Camera

High quality image with 6 MP, 1/2.5" CMOS sensor
Max. 2560 × 2560 resolution
Ultra 265, H.265, H.264, MJPEG
Supports Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
Smart intrusion prevention, including cross line, intrusion
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Support ultra motion detection
Heatmap: working with management platform, the data of moving objects is counted in real time on an intuitive color map
Intelligent people flow counting and crowd density monitoring
Ultra wide angle lens, 360° panoramic image
Embedded infrared light, 360° fill in light, up to 15 m (49.2 ft) IR distance
Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
Built in mic and speaker, supports two way audio
MicroSD, up to 512 GB
IK10 vandal resistant
IP67 protection

Official UNV Technical Specifications

Camera
Max Resolution	6 MP
Sensor	1/2.5" CMOS
Min. Illumination	Color: 0.005 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	120 dB
Lens
Focal Length	1.6 mm
Iris Type	Fixed
Field of View (H)	180 °
Field of View (V)	180 °
Field of View (D)	180 °
Iris	F2.0
Lens Type	Fixed
DORI
DORI Distance (Lens)	1.6 mm
DORI Distance (Detect)	36.0 m (118.1 ft)
DORI Distance (Observe)	14.4 m (47.2 ft)
DORI Distance (Recognize)	7.2 m (23.6 ft)
DORI Distance (Identify)	3.6 m (11.8 ft)
Illuminator
Illumination Distance (IR)	15 m (49.2 ft)
Supplemental Light	IR
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Video
Main Stream	Fisheye View: 6 MP (2560 × 2560), max. 30 fps; 2048 × 2048, max. 30 fps; 1440 × 1440, max. 30 fps; Panorama View: 6 MP (2560 × 2560), max. 30 fps; 2048 × 2048, max. 30 fps; 1440 × 1440, max. 30 fps; PTZ View: 1920 × 1080, max. 30 fps
Sub Stream	Fisheye View: 1024 × 1024, max. 30 fps
Video Compression	Ultra 265, H.265, H.264, MJPEG
Third Stream	Fisheye View: D1 (720 × 576), max. 30 fps; CIF (352 × 288), max. 30 fps
H.264 Code Profile	Baseline profile, Main profile, High profile
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Octuple Streams
Live View Display
Hardware Decoding	Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view
Software Decoding	Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	Support
Defog	Digital defog
Image Stabilization	N/A
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density detection
Statistical Analysis	Heat map (Working with management platform)
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression	G.711U, G.711A, AAC-LC
Audio Bitrate	G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ICMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password protection, Strong Password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF, TLS 1.2
Client	EZStation, APP
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Serial Port	N/A
Built-in Mic	Built-in dual-mic
Built-in Speaker	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 8.4 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø126 mm × 52 mm (Ø5.0" × 2.1") (Ø × H)
Weight	0.44kg （0.97lb）
Material	Metal + Plastic
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
RTC	Support
