מצלמת כיפה 4MP לתנאי חוץ,
מסדרת Prime-III (Project series),
עדשה חשמלית 2.8-12 מ"מ,
תאורת לילה: IR ל40 מטר,
WDR120DB, מיקרופון מובנה.
איכות תמונה
High quality image with 4 MP, 1/1.8" CMOS sensor
יכולות וידאו
2688 × 1520@30 fps in the main stream
אנליטיקה חכמה
Ultra 265, H.265, H.264, MJPEG
ביצועים מקצועיים
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
מצלמת כיפה 4MP לתנאי חוץ, מסדרת Prime-III (Project series), עדשה חשמלית 2.8-12 מ"מ, תאורת לילה: IR ל40 מטר, WDR120DB, מיקרופון מובנה.
| מותג | UNV |
|---|---|
| דגם | IPC3634SE-ADZK-I0 |
| מק״ט ספק | 32323363441 |
| סדרה | Prime-III |
| רזולוציה | 4MP |
| מבנה | כיפה |
| סוג עדשה | חשמלית |
| עדשה | 2.8~12mm |
| מיגון | IP67&IK10 |
| תאורת לילה | IR 40m |
| דחיסה | Ultra 265 |
| WDR | 120dB WDR |
| שמע | √ |
| כניסות/יציאות שמע | 1/1 |
| מגעים יבשים | 2/1 |
| PoE | Yes |
| כרטיס MicroSD | Yes |
| מצב מסדרון | Yes |
| כפתור אתחול | Yes |

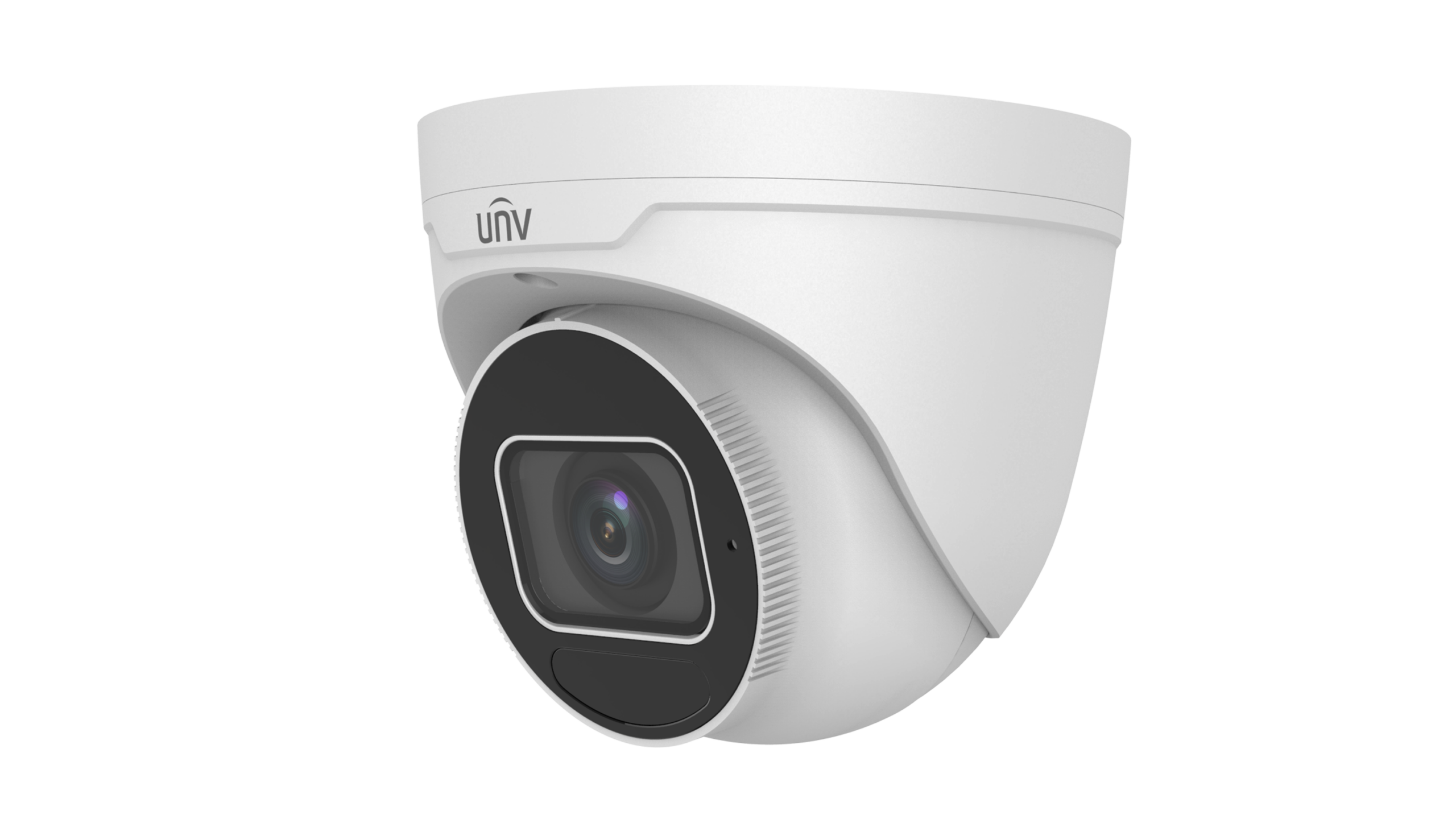

4MP LightHunter VF IR Turret Network Camera
| Camera | |
|---|---|
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | >56 dB |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Digital Zoom | 16X |
| Optical Zoom | 5X |
| Iris | F1.2 |
| Field of View (H) | 113.7° to 42.6° |
| Field of View (V) | 59.0° to 24.1° |
| Field of View (D) | 139.9° to 52.4° |
| Iris Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 2.8 to 12 mm |
| DORI Distance (Detect) | 68.0 m to 166.2 m (223.0 ft. to 545.2 ft) |
| DORI Distance (Observe) | 27.2 m to 66.5 m (89.2 ft. to 218.1 ft) |
| DORI Distance (Recognize) | 13.6 m to 33.2 m (44.6 ft. to 109.0 ft) |
| DORI Distance (Identify) | 6.8 m to 16.6 m (22.3 ft. to 54.5 ft) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| Privacy Mask | Up to 4 areas |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 30 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps |
| Intelligent | |
| Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Road Traffic | Support capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode available: High/Low pole |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Heatwave Reduction | N/A |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Illuminator | |
| Illumination Distance (IR) | 40 m (131.2 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Built-in Mic | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | 1 BNC (for debugging) |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC 12 V (±25%), PoE (IEEE 802.3af) |
| Power Consumption | Max. 9 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø129 mm × 110 mm (Ø5.1" × 4.3") (Ø × H) |
| Weight | 0.72 kg (1.59 lb) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Configurable | |
| P/N | Support |
| מותג | UNV |
|---|---|
| רזולוציית צילום | 4MP |
| עדשה | עדשה משתנה |
| אורך מוקד עדשה | 2.8-12 מ"מ |
| ראיית לילה | 40 מטר |
| סדרה | Prime-III |
