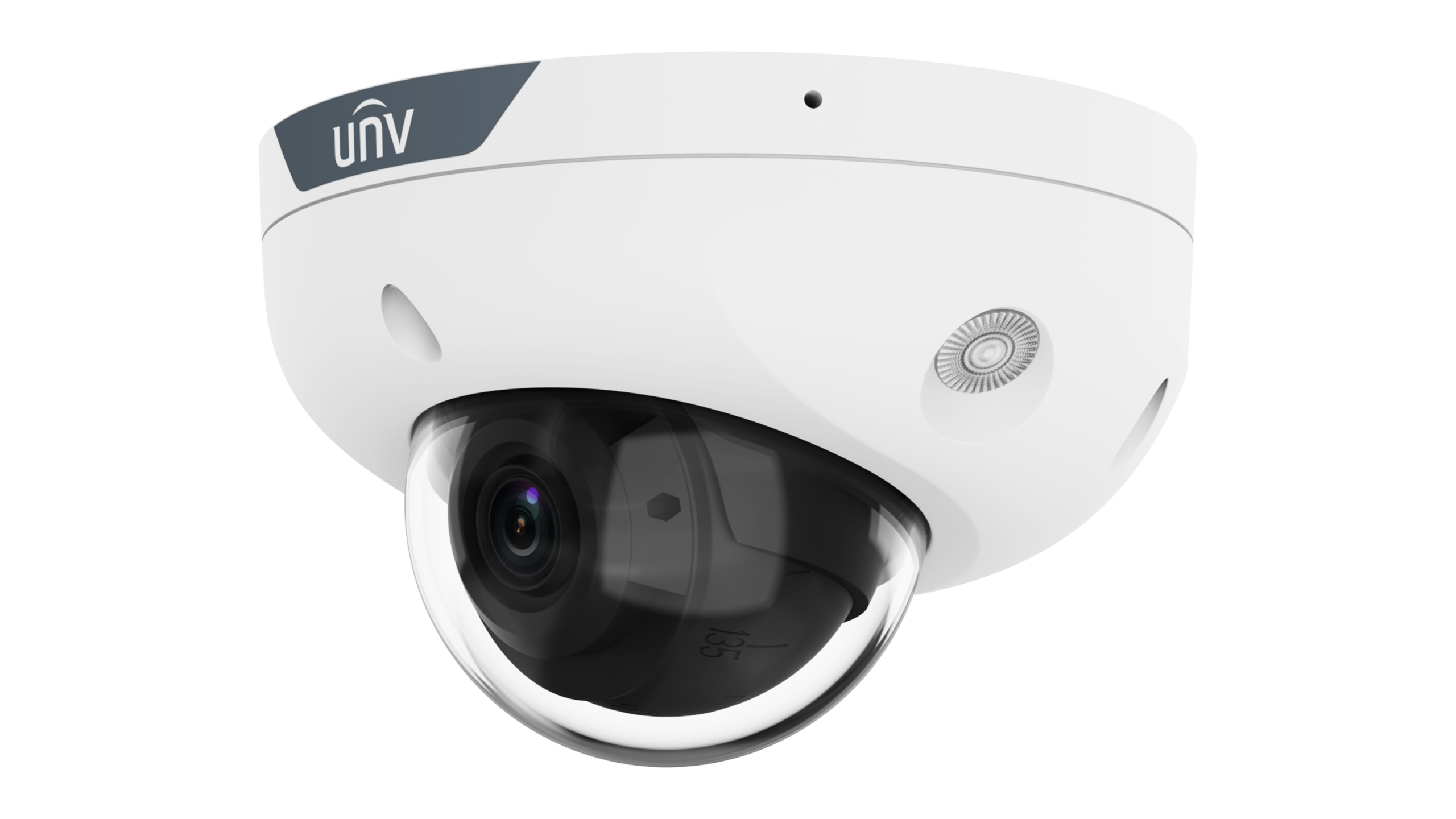

מצלמת IP מיני-חופה 8MP UNV עם עדשה 2.8mm דגם IPC318SB-ADF28KMC-DL-I1

Name: מצלמת IP מיני-חופה 8MP UNV עם עדשה 2.8mm דגם IPC318SB-ADF28KMC-DL-I1 | סיבים
Brand: Uniview
SKU: IPC318SB-ADF28KMC-DL-I1

צור קשר למחיר

מק"ט IPC318SB-ADF28KMC-DL-I1 קטגוריה מצלמות IP תגיות 8MP, IPC318SB-ADF28KMC-DL-I1, Prime-I (Tri-Guard), UNV, מיני-חופה, מצלמת IP מותג: Uniview

תיאור מצלמת IP מיני-חופה 8MP UNV עם עדשה 2.8mm דגם IPC318SB-ADF28KMC-DL-I1

מצלמת מיני-כיפה DUAL LIGHT צבע מלא בלילה 8MP לתנאי חוץ,
מסדרת Prime I – Tri-Guard 1.0,
עדשה קבועה 2.8 מ"מ,
תאורת לילה: IR ו WarmLight ל30 מטר,
WDR130DB, מיקרופון כפול וספיקר מובנים.

מה מיוחד ב-IPC318SB-ADF28KMC-DL-I1?

איכות תמונה

High quality image with 8MP, 1/2.7" CMOS sensor

יכולות וידאו

8MP (3840 × 2160)@30/25 (default) fps; 5MP (3072 × 1728)@30/25 fps; 4MP (2560 × 1440)@30/25 fps; 2MP (1920 × 1080)@30/25 fps

אנליטיקה חכמה

Ultra 265, H.265, H.264, MJPEG

ביצועים מקצועיים

Colorhunter with Wise ISP technology ensures 24 hour full color images

מצלמת IP מיני-חופה 8MP UNV עם עדשה 2.8mm דגם IPC318SB-ADF28KMC-DL-I1

מצלמת מיני-כיפה DUAL LIGHT צבע מלא בלילה 8MP לתנאי חוץ, מסדרת Prime I – Tri-Guard 1.0, עדשה קבועה 2.8 מ"מ, תאורת לילה: IR ו WarmLight ל30 מטר, WDR130DB, מיקרופון כפול וספיקר מובנים.

מפרט טכני

מותג	UNV
דגם	IPC318SB-ADF28KMC-DL-I1
מק״ט ספק	32323318001
סדרה	Prime-I (Tri-Guard)
רזולוציה	8MP
מבנה	מיני-חופה
סוג עדשה	קבועה
עדשה	2.8mm
מיגון	IP67&IK10
תאורת לילה	Warm light 30m
דחיסה	Ultra 265
WDR	130dB WDR
שמע	2 Mic&Speaker
כניסות/יציאות שמע	1/1
מגעים יבשים	1/1
PoE	Yes
כרטיס MicroSD	Yes
מצב מסדרון	Yes
כפתור אתחול	Yes
קופסת חיבורים	TR-JB03-G-IN
זרוע קיר	TR-JB07/WM03-G-IN-V2
מתאם לעמוד	TR-UP06-C-IN-V2
מתאם פינתי/תקרה	TR-UC08-C-V2

English Description

8MP Dual-light WDR Mini Dome Network Camera

High quality image with 8MP, 1/2.7" CMOS sensor
8MP (3840 × 2160)@30/25 (default) fps; 5MP (3072 × 1728)@30/25 fps; 4MP (2560 × 1440)@30/25 fps; 2MP (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Colorhunter with Wise ISP technology ensures 24 hour full color images
Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
Intelligent Intrusion Prevention System based on target classification significantly reduces false alarms caused by leaves, birds, and lighting, accurately focusing on humans, vehicles, and non motorized vehicles
Intelligent People Flow Counting and Crowd Density Monitoring
130dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Alarm I/O: 1/1, audio I/O: 1/1
Built-in dual-mic and speaker
Smart IR, up to 30 m (98.4 ft) IR distance
White light, up to 30 m (98.4 ft) warm light distance
Supports 512 G Micro SD card
IK10 vandal resistant
IP67 protection

Official UNV Technical Specifications

Camera
Max Resolution	8 MP
Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan:-48° to 48°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	> 56 dB
WDR	130 dB
Lens
Focal Length	2.8 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	104°
Field of View (V)	57.5°
Field of View (D)	121°
Lens Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	84.0 m (275.6 ft)
DORI Distance (Observe)	33.6 m (110.2 ft)
DORI Distance (Recognize)	16.8 m (55.1 ft)
DORI Distance (Identify)	8.4 m (27.6 ft)
Illuminator
Supplemental Light	Dual light
Illumination Distance (IR)	30 m (98.4 ft)
Illumination Distance (Warm Light)	30 m (98.4 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Light On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
Frame Rate-Main Stream	8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Frame Rate-Sub Stream	1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate-Third Stream	D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis	N/A
People Counting	Support people flow counting and crowd density detection
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression	G.711U, G.711A, AAC-LC
Audio Bitrate	G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, SSH, HTTPS, SMTP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Serial Port	N/A
Built-in Mic	Built-in dual-mic
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 8.5 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111.2 mm × 72.6 mm (Ø4.4" × 2.9") (Ø × H)
Weight	0.47 kg (1.04 lb)
Material	Metal
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese

Official UNV product page

מידע נוסף

מותג	UNV
רזולוציית צילום	8MP
עדשה	עדשה קבועה
אורך מוקד עדשה	2.8 מ"מ
ראיית לילה	30 מטר
סדרה	Prime-I (Tri-Guard)
