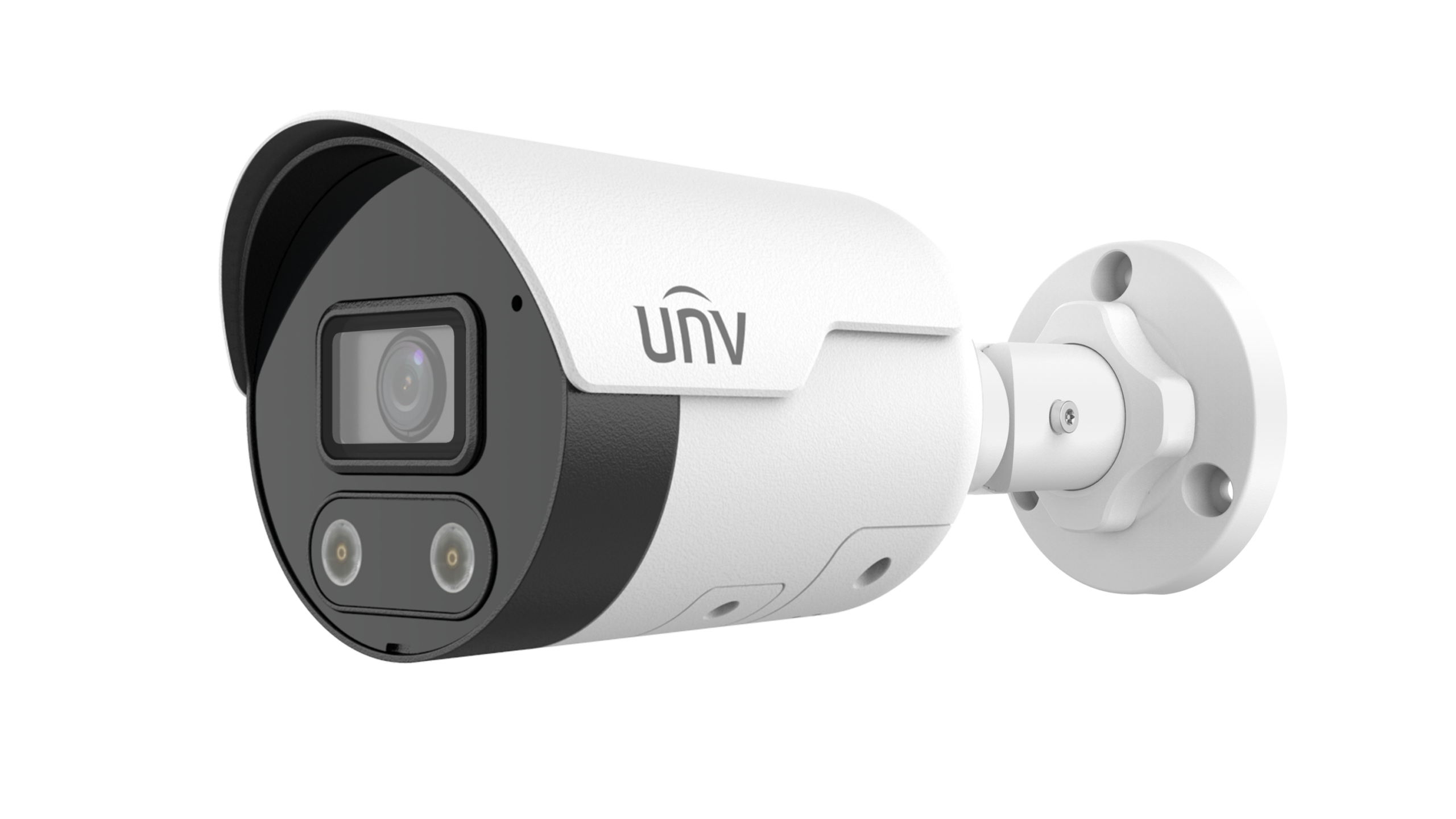

מצלמת IP צינור 4MP UNV עם עדשה 2.8mm דגם IPC2124SB-ADF28KMC-I1

Name: מצלמת IP צינור 4MP UNV עם עדשה 2.8mm דגם IPC2124SB-ADF28KMC-I1 | סיבים
Brand: Uniview
SKU: IPC2124SB-ADF28KMC-I1

צור קשר למחיר

מק"ט IPC2124SB-ADF28KMC-I1 קטגוריה מצלמות IP תגיות 4MP, IPC2124SB-ADF28KMC-I1, Prime-I (Tri-Guard), UNV, מצלמת IP, צינור מותג: Uniview

תיאור מצלמת IP צינור 4MP UNV עם עדשה 2.8mm דגם IPC2124SB-ADF28KMC-I1

מצלמת צינור 4MP לתנאי חוץ,
מסדרת Prime I – Tri-Guard 1.0,
עדשה קבועה 2.8 מ"מ,
תאורת לילה: IR ו WarmLight ל40 מטר,
WDR130DB, מיקרופון וספיקר מובנים.

מה מיוחד ב-IPC2124SB-ADF28KMC-I1?

איכות תמונה

High quality image with 4 MP, 1/2.9" CMOS sensor

יכולות וידאו

4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

אנליטיקה חכמה

Ultra 265, H.265, H.264, MJPEG

ביצועים מקצועיים

ColorHunter with Wise-ISP technology ensures 24-hour full-color images

מצלמת IP צינור 4MP UNV עם עדשה 2.8mm דגם IPC2124SB-ADF28KMC-I1

מצלמת צינור 4MP לתנאי חוץ, מסדרת Prime I – Tri-Guard 1.0, עדשה קבועה 2.8 מ"מ, תאורת לילה: IR ו WarmLight ל40 מטר, WDR130DB, מיקרופון וספיקר מובנים.

מפרט טכני

מותג	UNV
דגם	IPC2124SB-ADF28KMC-I1
מק״ט ספק	32323212441
סדרה	Prime-I (Tri-Guard)
רזולוציה	4MP
מבנה	צינור
סוג עדשה	קבועה
עדשה	2.8mm
מיגון	IP67
תאורת לילה	Warm light 40m
דחיסה	Ultra 265
WDR	130dB WDR
שמע	MIC&Speaker
כניסות/יציאות שמע	X
מגעים יבשים	X
PoE	Yes
כרטיס MicroSD	Yes
מצב מסדרון	Yes
כפתור אתחול	Yes
קופסת חיבורים	TR-JB05-B-IN
מתאם לעמוד	TR-UP06-C-IN-V2
מתאם פינתי/תקרה	TR-UC08-C-V2

English Description

4MP WDR Dual-light Alarm Bullet Network Camera

High quality image with 4 MP, 1/2.9" CMOS sensor
4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
ColorHunter with Wise-ISP technology ensures 24-hour full-color images
Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lighting, accurately focusing on humans, vehicles, and non-motorized vehicles
Intelligent people flow counting and crowd density monitoring
130 dB true WDR technology ensures clear image in strong backlight scene
Supports 9:16 corridor mode
Built-in mic and speaker
Smart IR, up to 40 m (131.2 ft) IR distance
MicroSD, up to 512 GB
IP67 protection

Official UNV Technical Specifications

Camera
Max Resolution	4 MP
Sensor	1/2.9" CMOS
Min. Illumination	Color: 0.002 Lux (F1.4, AGC ON), 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 56 dB
WDR	130 dB
Lens
Focal Length	2.8 mm
Iris	F1.4
Field of View (H)	101.1°
Field of View (V)	57.1°
Field of View (D)	117.7°
Lens Type	Fixed
Iris Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	63.0 m (206.7 ft.)
DORI Distance (Observe)	25.2 m (82.7 ft.)
DORI Distance (Recognize)	12.6 m (41.3 ft.)
DORI Distance (Identify)	6.3 m (20.7 ft.)
Illuminator
Illumination Distance (IR)	40 m (131.2 ft)
Illumination Distance (Warm Light)	40 m (131.2 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Light On/Off Control	Auto/Manual
Supplemental Light	Dual light
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis	N/A
People Counting	Support people flow counting and crowd density detection
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U, G.711A, AAC-LC
Audio Bitrate	G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 10.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	192 mm × 75 mm × 74 mm (7.6" × 3.0" × 2.9") (L × W × H)
Weight	0.41 kg (0.90 lb)
Material	Metal
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese

Official UNV product page

מידע נוסף

מותג	UNV
רזולוציית צילום	4MP
עדשה	עדשה קבועה
אורך מוקד עדשה	2.8 מ"מ
ראיית לילה	40 מטר
סדרה	Prime-I (Tri-Guard)
