מצלמת צינור 4MP לתנאי חוץ,
מסדרת PRIME-IV,
עדשה חשמלית 8-32 מ"מ,
תאורת לילה: IR ל120 מטר
ו WarmLight ל30 מטר,
WDR130DB, מיקרופון מובנה.
איכות תמונה
High quality image with 4 MP, 1/1.8" CMOS sensor
יכולות וידאו
2688 × 1520@60 fps in the main stream, delivers detailed live while 60 fps keeping it smooth and closer to the real image
אנליטיקה חכמה
Ultra 265, H.265, H.264, MJPEG
ביצועים מקצועיים
Smart intrusion prevention, supports false alarm filtering, including cross Line, Intrusion, enter area, and leave area detection
מצלמת צינור 4MP לתנאי חוץ, מסדרת PRIME-IV, עדשה חשמלית 8-32 מ"מ, תאורת לילה: IR ל120 מטר ו WarmLight ל30 מטר, WDR130DB, מיקרופון מובנה.
| מותג | UNV |
|---|---|
| דגם | IPC264SA-AHDX4K-I1 |
| מק״ט ספק | 32323264040 |
| סדרה | Prime-IV |
| רזולוציה | 4MP |
| מבנה | צינור |
| סוג עדשה | חשמלית |
| עדשה | 8~32mm |
| מיגון | IP67&IK10 |
| תאורת לילה | IR 120m |
| דחיסה | Ultra 265 |
| WDR | 130dB WDR |
| שמע | √ |
| כניסות/יציאות שמע | 2/1 |
| מגעים יבשים | 3/2 |
| PoE | Yes |
| כרטיס MicroSD | Yes |
| מצב מסדרון | No |
| כפתור אתחול | Yes |
| קופסת חיבורים | קופסת חיבורים מובנית בגוף המצלמה |
| מתאם לעמוד | TR-UP06-C-IN-V2 |
| מתאם פינתי/תקרה | TR-UC08-C-V2 |

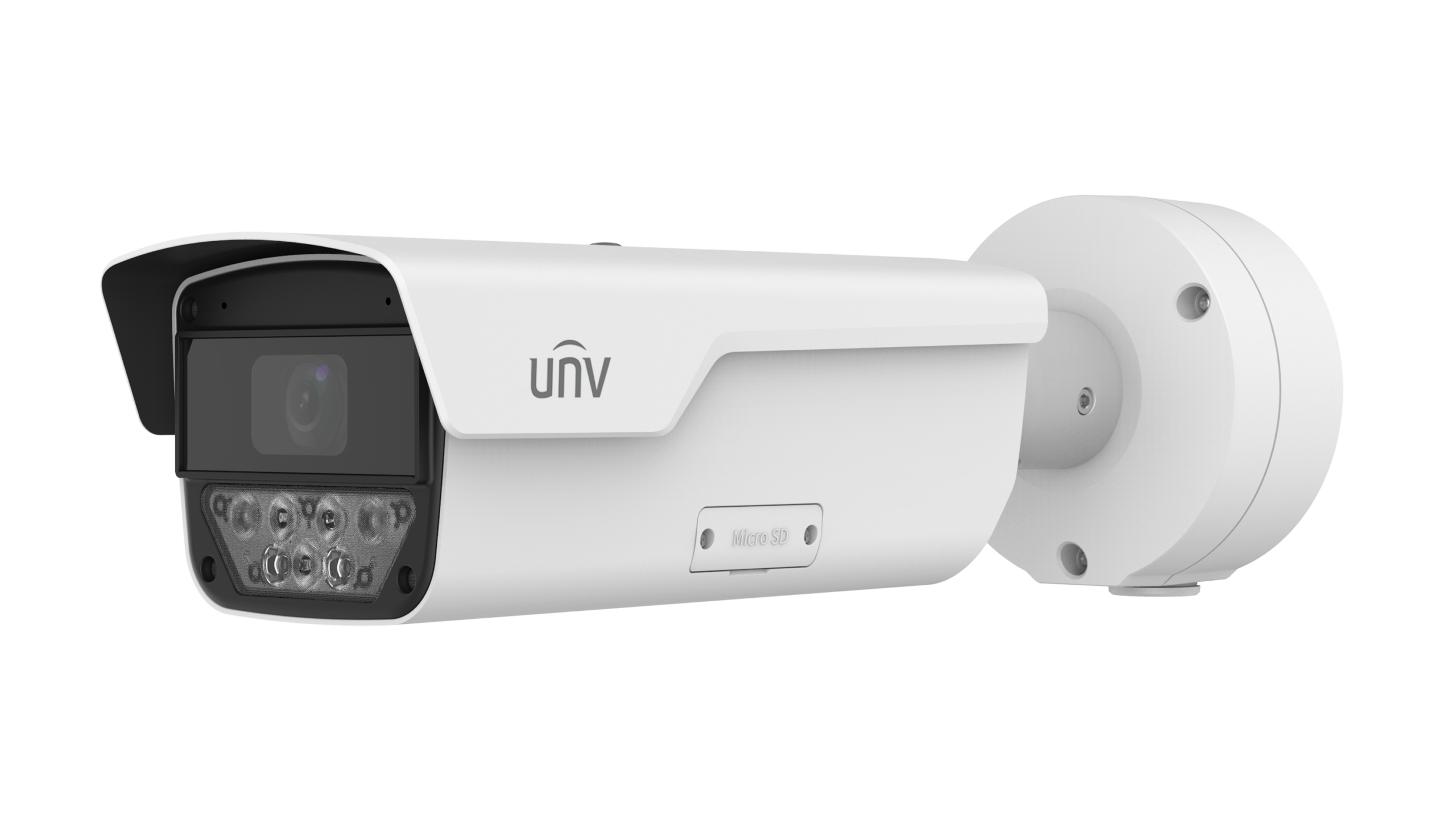

4MP LightHunter VF Dual-light Bullet Network Camera
| Camera | |
|---|---|
| Max Resolution | 4 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with Light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 130 dB |
| S/N | >56 dB |
| Lens | |
| Focal Length | 8 to 32 mm |
| Iris | F1.6 |
| Field of View (H) | 42.6° to 15.2° |
| Field of View (V) | 23.5° to 8.9° |
| Field of View (D) | 52.4° to 17.9° |
| Iris Type | P-iris |
| DORI | |
| DORI Distance (Lens) | 8 to 32 mm |
| DORI Distance (Detect) | 165.7 m to 444.4 m (543.7 ft. to 1458.1 ft) |
| DORI Distance (Observe) | 66.3 m to 177.8 m (217.5 ft. to 583.2 ft) |
| DORI Distance (Recognize) | 33.1 m to 88.9 m (108.7 ft. to 291.6 ft) |
| DORI Distance (Identify) | 16.6 m to 44.4 m (54.4 ft. to 145.8 ft) |
| Illuminator | |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Illumination Distance (IR) | 120 m (393.7 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 750 nm |
| Supplemental Light | Dual light |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 60 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps |
| Intelligent | |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Road Traffic | Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode available: High/Low pole |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Flip vertical, Flip horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Heatwave Reduction | N/A |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Ultra motion detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| UMD (Ultra Motion Detection) | Support |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| PTZ | |
| Home Position | Support |
| Interface | |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC 12 V (±25%), PoE+ (IEEE 802.3at) |
| Power Consumption | Max. 23 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 406 mm × 126 mm × 130 mm (16.0" × 5.0" × 5.1") (L × W × H) |
| Weight | 2.14 kg (4.72 lb) |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| RTC | Support |
| Material | Metal + Plastic |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Heater | Support |
| Live View | |
| Maximum Bitstream | 35 |
| Other | |
| Corridor Mode | Support |
| מותג | UNV |
|---|---|
| רזולוציית צילום | 4MP |
| עדשה | עדשה משתנה |
| אורך מוקד עדשה | 8-32 מ"מ |
| ראיית לילה | 120 מטר |
| סדרה | Prime-IV |
