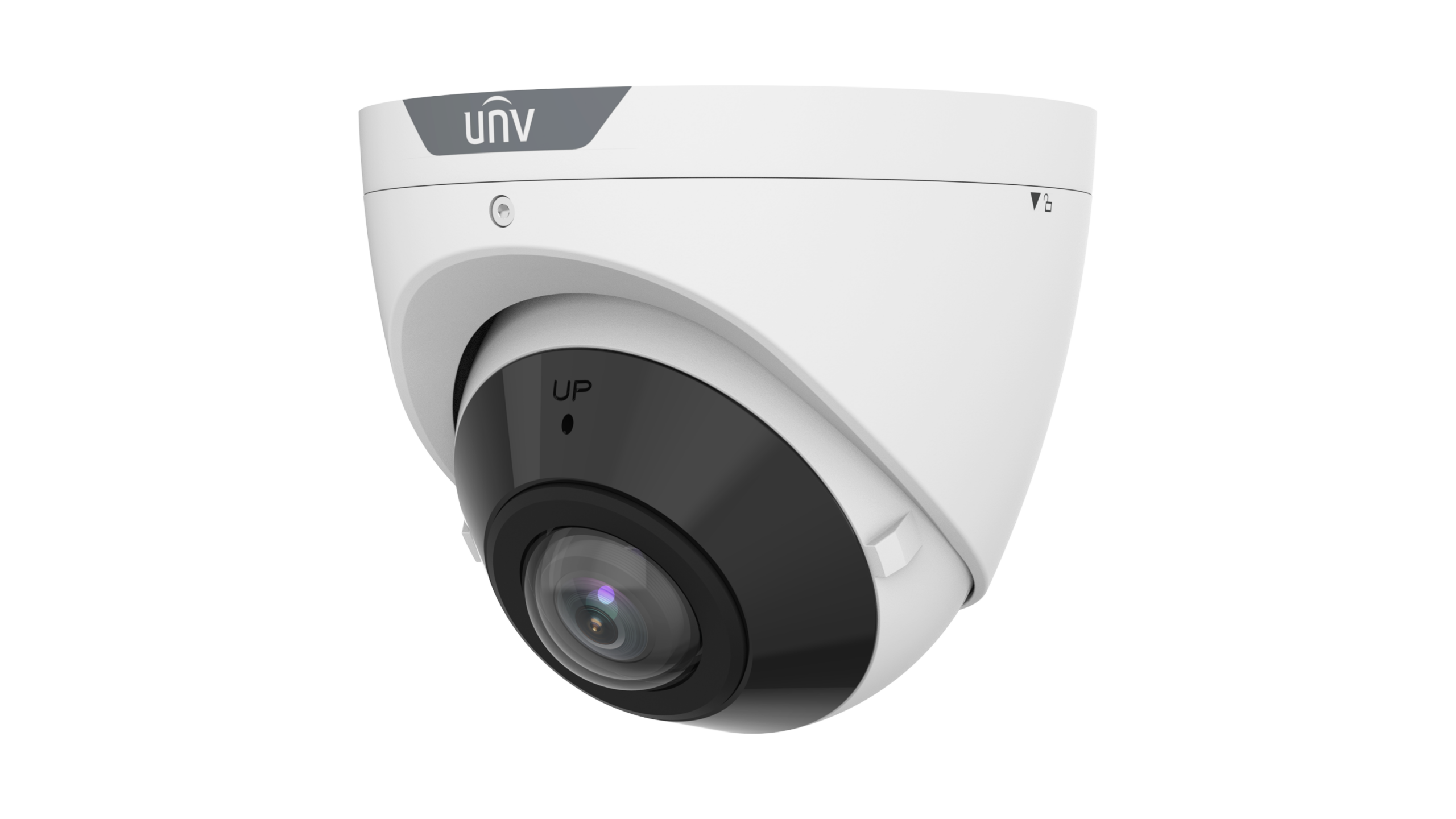

מצלמת IP כיפה 8MP UNV עם עדשה 1.68mm דגם IPC3608SB-ADF16KM-I0

Name: מצלמת IP כיפה 8MP UNV עם עדשה 1.68mm דגם IPC3608SB-ADF16KM-I0 | סיבים
Brand: Uniview
SKU: IPC3608SB-ADF16KM-I0

צור קשר למחיר

מק"ט IPC3608SB-ADF16KM-I0 קטגוריה מצלמות IP תגיות 8MP, IPC3608SB-ADF16KM-I0, Prime-I, UNV, כיפה, מצלמת IP מותג: Uniview

תיאור מצלמת IP כיפה 8MP UNV עם עדשה 1.68mm דגם IPC3608SB-ADF16KM-I0

מצלמת כיפה פאנורמית 180° 8MP לתנאי חוץ,
מסדרת Prime-I,
עדשה קבועה 1.68 מ"מ,
תאורת לילה: IR ל20 מטר,
WDR120DB, מיקרופון מובנה.

מה מיוחד ב-IPC3608SB-ADF16KM-I0?

איכות תמונה

High quality image with 8 MP, 1/2.7" CMOS sensor

יכולות וידאו

8 MP (3840 × 2160)@30/25 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

אנליטיקה חכמה

Wide angle technology realizes the horizontal viewing angle of 180°

ביצועים מקצועיים

The dewarp level can be configured in the range of 1 to 9

מצלמת IP כיפה 8MP UNV עם עדשה 1.68mm דגם IPC3608SB-ADF16KM-I0

מצלמת כיפה פאנורמית 180° 8MP לתנאי חוץ, מסדרת Prime-I, עדשה קבועה 1.68 מ"מ, תאורת לילה: IR ל20 מטר, WDR120DB, מיקרופון מובנה.

מפרט טכני

מותג	UNV
דגם	IPC3608SB-ADF16KM-I0
מק״ט ספק	32323360801
סדרה	Prime-I
רזולוציה	8MP
מבנה	כיפה
סוג עדשה	קבועה
עדשה	1.68mm
מיגון	IP67
תאורת לילה	IR 20m
דחיסה	Ultra 265
WDR	120dB WDR
שמע	√
כניסות/יציאות שמע	X
מגעים יבשים	X
PoE	Yes
כרטיס MicroSD	Yes
מצב מסדרון	No
כפתור אתחול	Yes
קופסת חיבורים	TR-JB03-G-IN
זרוע קיר	TR-JB07/WM03-G-IN-V2
מתאם לעמוד	TR-UP06-C-IN-V2
מתאם פינתי/תקרה	TR-UC08-C-V2

English Description

8MP OmniView Fixed IR Turret Network Camera

High quality image with 8 MP, 1/2.7" CMOS sensor
8 MP (3840 × 2160)@30/25 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Wide angle technology realizes the horizontal viewing angle of 180°
The dewarp level can be configured in the range of 1 to 9
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
120 dB true WDR technology enables clear image in strong light scene
Built-in mic
Smart IR, up to 20 m (65.6 ft) IR distance
MicroSD, up to 512 GB
IP67 protection
IK10 vandal resistant

Official UNV Technical Specifications

Camera
Max Resolution	8 MP
Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
WDR	120 dB
S/N	>52 dB
Lens
Focal Length	1.68 mm
Iris	F2.0
Field of View (H)	180°
Field of View (V)	100°
Field of View (D)	180°
Lens Type	Fixed
Iris Type	Fixed
DORI
DORI Distance (Lens)	1.68 mm
DORI Distance (Detect)	37.8 m (124.0 ft)
DORI Distance (Observe)	15.1 m (49.6 ft)
DORI Distance (Recognize)	7.6 m (24.9 ft)
DORI Distance (Identify)	3.8 m (12.5 ft)
Illuminator
Illumination Distance (IR)	20 m (65.6 ft)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Supplemental Light	IR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
Frame Rate-Main Stream	8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps
Frame Rate-Sub Stream	720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate-Third Stream	D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Auto Scene Match (ASM)	Support (only WDR)
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IR	Support
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	Support
HLC	Support
BLC	Support
Image Stabilization	N/A
Low Illumination Characteristics	Low-light
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Attribute Collection	SIP with color retrieval
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression	G.711U, G.711A, AAC-LC
Audio Bitrate	G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.5 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm × 93 mm (Ø4.4" × 3.7") (Ø × H)
Weight	0.48 kg (1.06 lb)
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Material	Metal
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
