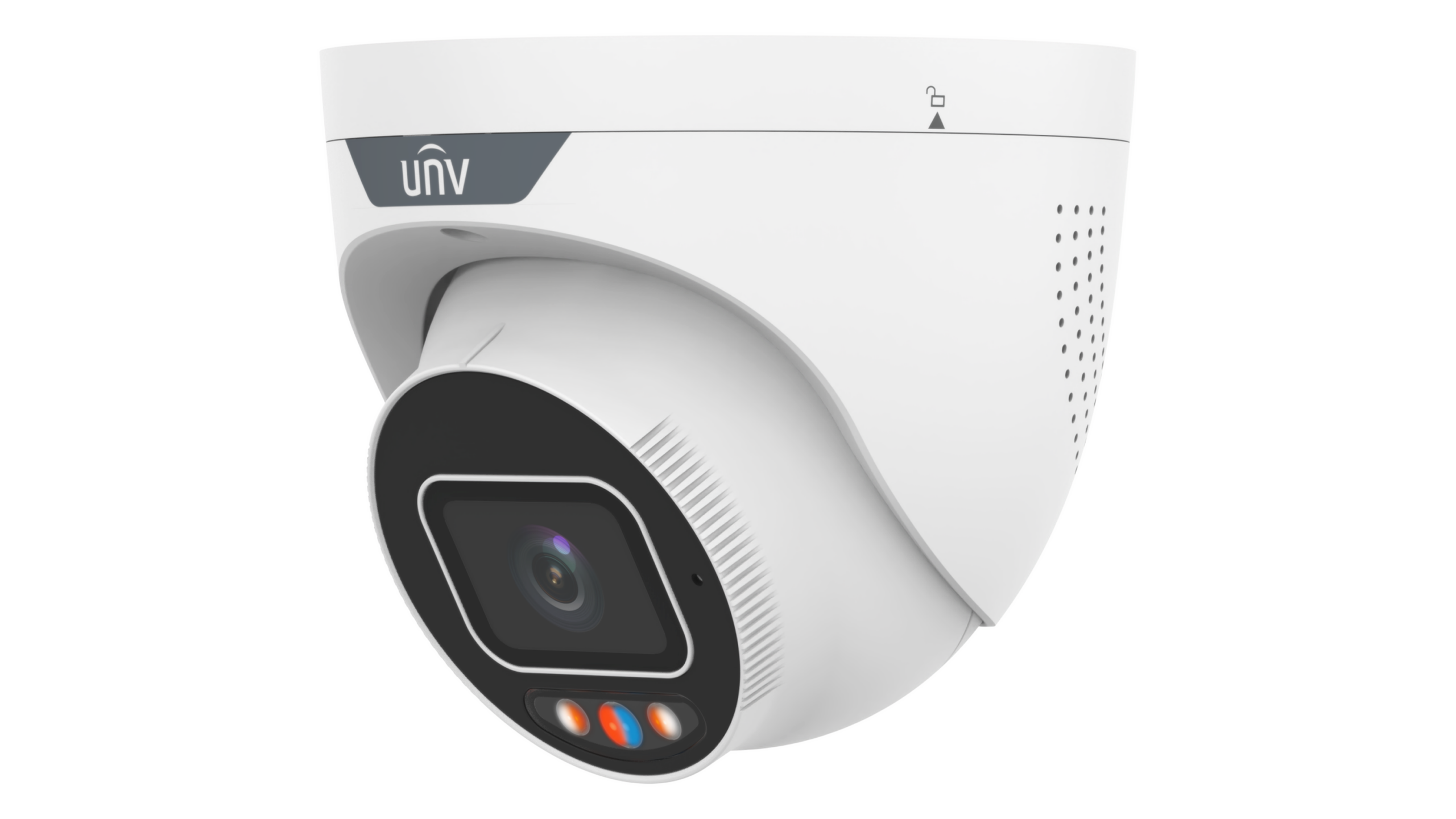

מצלמת IP כיפה 8MP UNV עם עדשה 2.8mm דגם IPC3638SS-ADF28KMC-I1

Name: מצלמת IP כיפה 8MP UNV עם עדשה 2.8mm דגם IPC3638SS-ADF28KMC-I1 | סיבים
Brand: Uniview
SKU: IPC3638SS-ADF28KMC-I1

צור קשר למחיר

מק"ט IPC3638SS-ADF28KMC-I1 קטגוריה מצלמות IP תגיות 8MP, IPC3638SS-ADF28KMC-I1, Prime-II, UNV, כיפה, מצלמת IP מותג: Uniview

תיאור מצלמת IP כיפה 8MP UNV עם עדשה 2.8mm דגם IPC3638SS-ADF28KMC-I1

מצלמת כיפה DUAL LIGHT צבע מלא בלילה 8MP לתנאי חוץ,
מסדרת Prime II- Tri-Guard 2.0,
עדשה קבועה 2.8 מ"מ,
תאורת לילה: IR ו WarmLight ל40 מטר,
WDR130DB, מיקרופון וספיקר מובנים
אורות אזהרה בצבע כחול אדום בזמן גילוי והשמעת הודעות חירום.

מה מיוחד ב-IPC3638SS-ADF28KMC-I1?

איכות תמונה

High quality image with 8 MP, 1/2.8" CMOS sensor

יכולות וידאו

8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

אנליטיקה חכמה

Ultra 265, H.265, H.264, MJPEG

ביצועים מקצועיים

Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection

מצלמת IP כיפה 8MP UNV עם עדשה 2.8mm דגם IPC3638SS-ADF28KMC-I1

מצלמת כיפה DUAL LIGHT צבע מלא בלילה 8MP לתנאי חוץ, מסדרת Prime II- Tri-Guard 2.0, עדשה קבועה 2.8 מ"מ, תאורת לילה: IR ו WarmLight ל40 מטר, WDR130DB, מיקרופון וספיקר מובנים אורות אזהרה בצבע כחול אדום בזמן גילוי והשמעת הודעות חירום.

מפרט טכני

מותג	UNV
דגם	IPC3638SS-ADF28KMC-I1
מק״ט ספק	32323363802
סדרה	Prime-II
רזולוציה	8MP
מבנה	כיפה
סוג עדשה	קבועה
עדשה	2.8mm
מיגון	IP67
תאורת לילה	Warm light 30m
דחיסה	Ultra 265
WDR	130dB WDR
שמע	MIC&Speaker
כניסות/יציאות שמע	1/1
מגעים יבשים	1/1
PoE	Yes
כרטיס MicroSD	Yes
מצב מסדרון	Yes
כפתור אתחול	Yes
קופסת חיבורים	TR-JB03-H-IN-V2
זרוע קיר	TR-JB07/WM03-F-IN-V2
מתאם לעמוד	TR-UP06-C-IN-V2
מתאם פינתי/תקרה	TR-UC08-C-V2

English Description

8MP Tri-Guard Fixed Dual-light Turret Network Camera

High quality image with 8 MP, 1/2.8" CMOS sensor
8 MP (3840 × 2160)@30/25 (default) fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Intelligent people flow counting and crowd density monitoring
Smart intrusion prevention with color retrieval
ASM (auto scene match)
130 dB true WDR technology enables clear image in strong light scene
Supports red and blue warning light
Supports 9:16 corridor mode
Alarm I/O: 1/1, audio I/O: 1/1, built-in mic and speaker
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IP67 protection

Official UNV Technical Specifications

Camera
Max Resolution	8 MP
Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.001 Lux ( F1.0, AGC ON), 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	>56 dB
WDR	130 dB
Lens
Focal Length	2.8 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	106.5°
Field of View (V)	57.9°
Field of View (D)	132°
DORI
DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	86.9 m (285.1 ft.)
DORI Distance (Observe)	34.8 m (114.2 ft.)
DORI Distance (Recognize)	17.4 m (57.1 ft.)
DORI Distance (Identify)	8.7 m (28.5 ft.)
Illuminator
Supplemental Light	Dual light
Illumination Distance (IR)	IR 30 m (98.4 ft), warm light 30 m (98.4 ft)
Illumination Distance (Warm Light)	IR 30 m (98.4 ft), warm light 30 m (98.4 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Light On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Auto Scene Match (ASM)	Support (only WDR)
Flip	Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical Analysis	N/A
People Counting	Support people flow counting and crowd density detection
Attribute Collection	SIP with color retrieval
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression	G.711U, G.711A, AAC-LC
Audio Bitrate	G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 10.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø129 mm × 118 mm (Ø5.1" × 4.7") (Ø × H)
Weight	0.69 kg (1.53 lb)
Material	Metal
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
