מצלמת צינור 4MP לתנאי חוץ,
מסדרת PRIME-IV,
עדשה חשמלית 2.7-13.5 מ"מ,
תאורת לילה: IR ל80 מטר,
WDR130DB, מיקרופון מובנה.
איכות תמונה
High quality image with 4 MP, 1/1.8" CMOS sensor
יכולות וידאו
2688 × 1520@60 fps in the main stream, delivers ultra high definition live
אנליטיקה חכמה
Motorized lens with P-iris, supports accurate control of exposure
ביצועים מקצועיים
Ultra 265, H.265, H.264, MJPEG
מצלמת צינור 4MP לתנאי חוץ, מסדרת PRIME-IV, עדשה חשמלית 2.7-13.5 מ"מ, תאורת לילה: IR ל80 מטר, WDR130DB, מיקרופון מובנה.
| מותג | UNV |
|---|---|
| דגם | IPC2B24SA-AHDZK-PI-I2A |
| מק״ט ספק | 32323224003 |
| סדרה | Prime-IV |
| רזולוציה | 4MP |
| מבנה | צינור |
| סוג עדשה | חשמלית |
| עדשה | 2.7-13.5mm |
| מיגון | IP67&IK10 |
| תאורת לילה | IR 80m |
| דחיסה | Ultra 265 |
| WDR | 130dB WDR |
| שמע | √ |
| כניסות/יציאות שמע | 1/1 |
| מגעים יבשים | 1/1 |
| PoE | Yes |
| כרטיס MicroSD | Yes |
| מצב מסדרון | No |
| כפתור אתחול | No |
| קופסת חיבורים | TR-JB07-D-IN-V2 |
| מתאם לעמוד | TR-UP06-C-IN-V2 |
| מתאם פינתי/תקרה | TR-UC08-C-V2 |

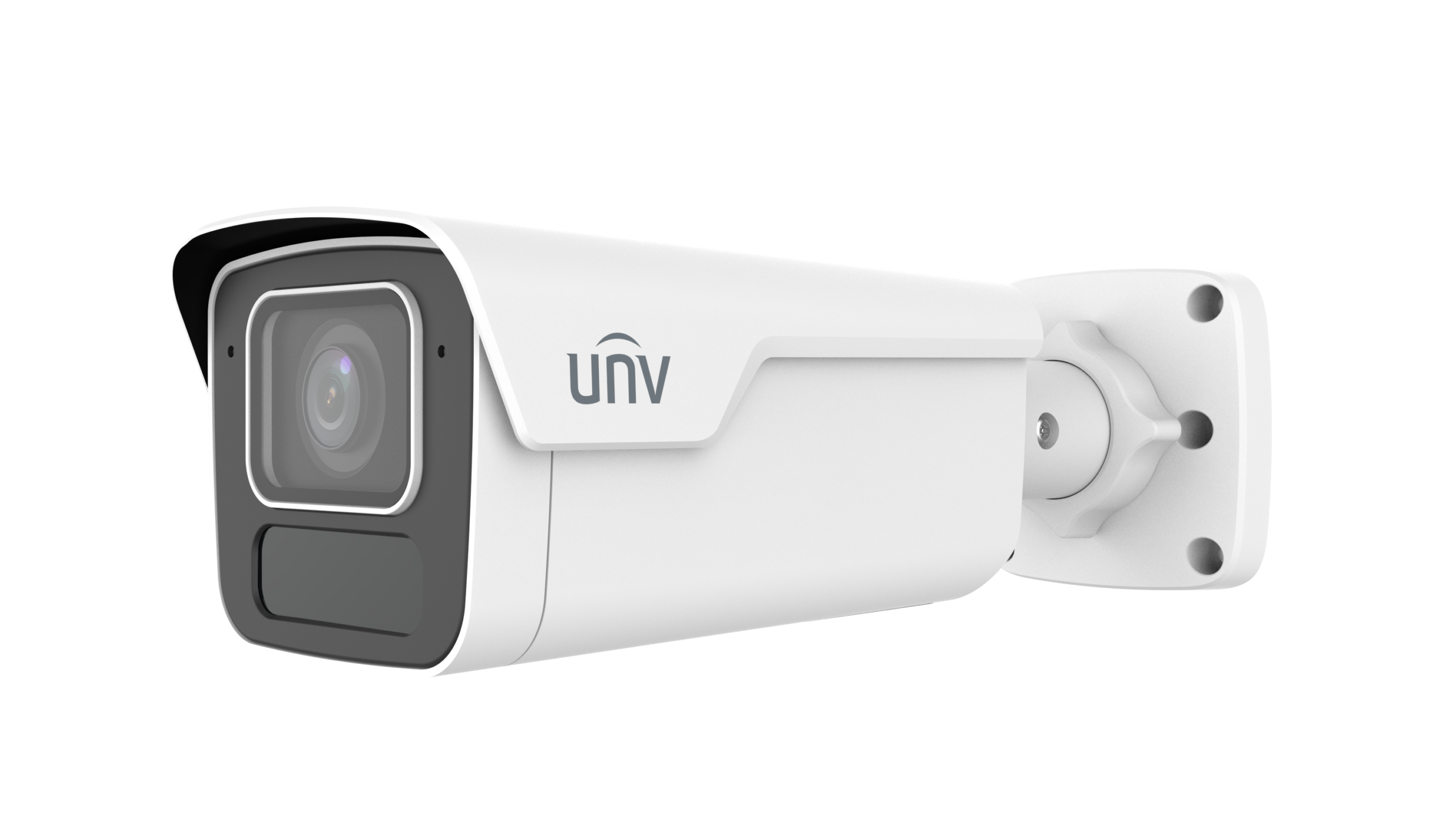

4MP Super Starlight WDR IR VF P-IRIS Bullet Network Camera
| Camera | |
|---|---|
| Max Resolution | 4 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0003 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 130 dB |
| S/N | > 56 dB |
| Lens | |
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.2 |
| Field of View (H) | 107.4° to 49.1° |
| Field of View (V) | 56.4° to 27.9° |
| Field of View (D) | 128.8° to 60.4° |
| Iris Type | P-iris |
| DORI | |
| DORI Distance (Lens) | 2.7 to 13.5 mm |
| DORI Distance (Detect) | 68.0 m to 144.8 m (223.1 ft. to 475.1 ft) |
| DORI Distance (Observe) | 27.2 m to 57.9 m (89.2 ft. to 190.0 ft) |
| DORI Distance (Recognize) | 13.6 m to 29.0 m (44.6 ft. to 95.1 ft) |
| DORI Distance (Identify) | 6.8 m to 14.5 m (22.3 ft. to 47.6 ft) |
| Illuminator | |
| Illumination Distance (IR) | 80 m (262.5 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Supplemental Light | IR |
| Video | |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 60 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
| Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| EIS | Support |
| Intelligent | |
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Road Traffic | Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode available: High/Low pole |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| UMD (Ultra Motion Detection) | Support |
| Audio | |
| Audio Compression | G.711U, G.711A, AAC-LC |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz, 16 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, FTP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Built-in dual-mic |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC-SDoC (47 CFR Part15, Subpart B) |
| Safety | CE-LVD (EN IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
| General | |
| Power | DC 12 V (±25%), PoE (IEEE 802.3af) |
| Power Consumption | Max. 11.8 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 268 mm × 96 mm × 82 mm (10.5" × 3.7" × 3.2") (L × W × H) |
| Built-in DC12V Output | Support |
| Weight | 1 kg (2.20 lb) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| RTC | Support |
| Material | Metal + Plastic |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Live View | |
| Maximum Bitstream | 35 |
| Other | |
| Corridor Mode | Support |
| מותג | UNV |
|---|---|
| רזולוציית צילום | 4MP |
| עדשה | עדשה משתנה |
| אורך מוקד עדשה | 2.7-13.5 מ"מ |
| ראיית לילה | 80 מטר |
| סדרה | Prime-IV |
