מצלמת צינור 8MP לתנאי חוץ,
מסדרת Prime-III (Project series),
עדשה חשמלית 2.8-12 מ"מ,
תאורת לילה: IR ל80 מטר,
WDR120DB, מיקרופון מובנה.
איכות תמונה
High quality image with 8MP,1/1.8’’ CMOS sensor
יכולות וידאו
3840*2160@30fps in the main stream
אנליטיקה חכמה
Ultra 265, H.265, H.264, MJPEG
ביצועים מקצועיים
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
מצלמת צינור 8MP לתנאי חוץ, מסדרת Prime-III (Project series), עדשה חשמלית 2.8-12 מ"מ, תאורת לילה: IR ל80 מטר, WDR120DB, מיקרופון מובנה.
| מותג | UNV |
|---|---|
| דגם | IPC2A28SE-ADZK-I0 |
| מק״ט ספק | 32323228021 |
| סדרה | Prime-III |
| רזולוציה | 8MP |
| מבנה | צינור |
| סוג עדשה | חשמלית |
| עדשה | 2.8~12mm |
| מיגון | IP67&IK10 |
| תאורת לילה | IR 80m |
| דחיסה | Ultra 265 |
| WDR | 120dB WDR |
| שמע | √ |
| כניסות/יציאות שמע | 1/1 |
| מגעים יבשים | 2/1 |
| PoE | Yes |
| כרטיס MicroSD | Yes |
| מצב מסדרון | Yes |
| כפתור אתחול | Yes |

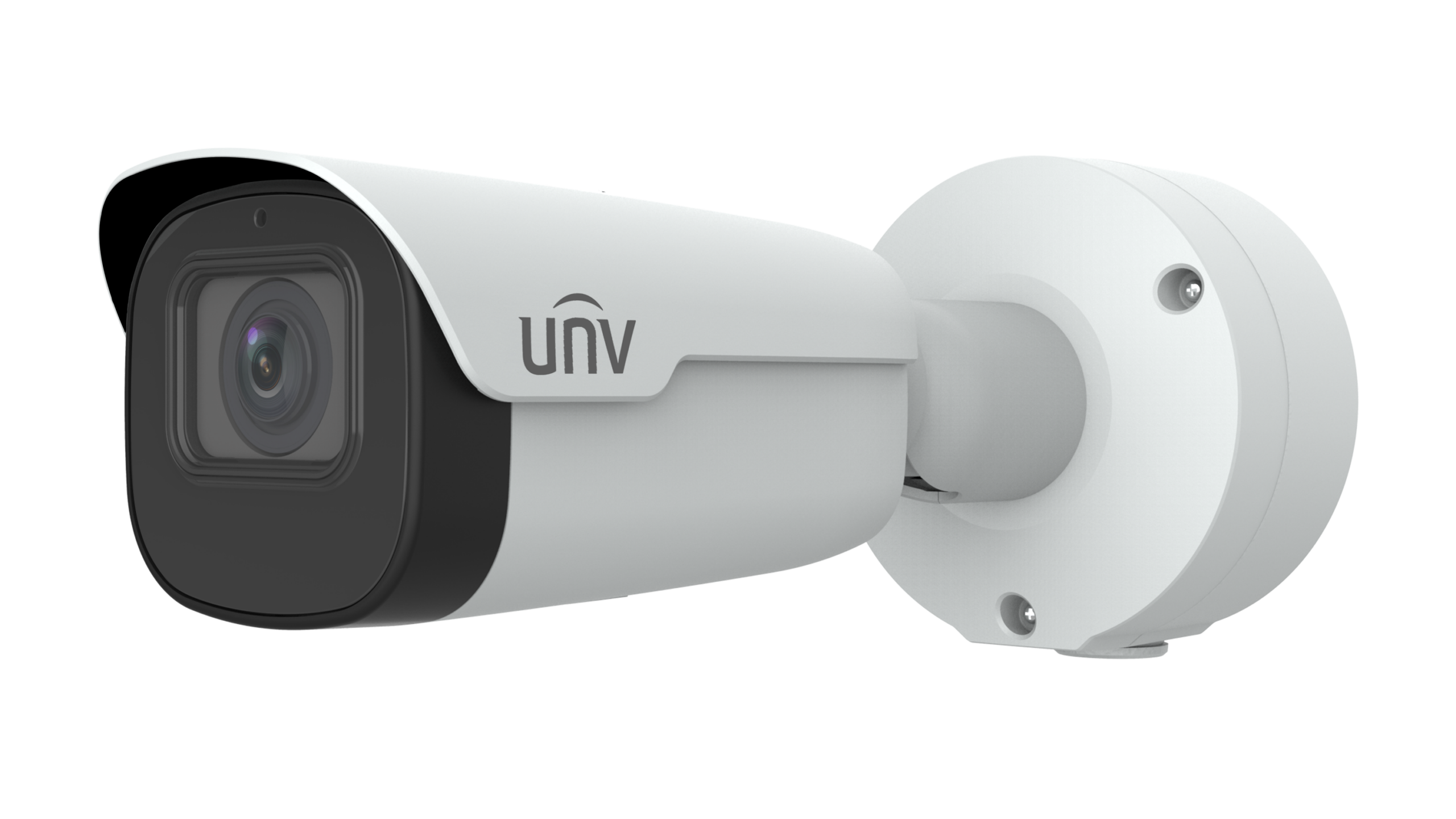

8MP LightHunter VF IR Bullet Network Camera
| Camera | |
|---|---|
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0008 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56 dB |
| Lens | |
| Focal Length | 2.8 to 12 mm |
| Digital Zoom | 16X |
| Optical Zoom | 5X |
| Iris | F1.2 |
| Field of View (H) | 101.1° to 48.0° |
| Field of View (V) | 57.2° to 23.9° |
| Field of View (D) | 124.3° to 59.0° |
| Iris Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 2.8 to 12 mm |
| DORI Distance (Detect) | 98.6 m to 241.0 m (323.3 ft. to 790.6 ft) |
| DORI Distance (Observe) | 39.4 m to 96.4 m (129.3 ft. to 316.2 ft) |
| DORI Distance (Recognize) | 19.7 m to 48.2 m (64.7 ft. to 158.1 ft) |
| DORI Distance (Identify) | 9.9 m to 24.1 m (32.3 ft. to 79.1 ft) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 30 fps |
| Frame Rate-Sub Stream | 720P (1280 × 720), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
| Privacy Mask | Up to 4 areas |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication |
| Intelligent | |
| Exception Detection | Object removed, Object Left Behind, Scene change, Defocus detection |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| Traffic Monitoring | Support capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Heatwave Reduction | N/A |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Built-in Mic | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | 1 BNC (for debugging) |
| Illuminator | |
| Illumination Distance (IR) | 80 m (262.5 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC 12 V (±25%), PoE (IEEE 802.3af) |
| Power Consumption | Max. 10 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø130 mm × 322 mm (Ø5.1" × 12.7") (Ø × H) |
| Weight | 1.3 kg (2.87 lb) |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Heater | Support |
| מותג | UNV |
|---|---|
| רזולוציית צילום | 8MP |
| עדשה | עדשה משתנה |
| אורך מוקד עדשה | 2.8-12 מ"מ |
| ראיית לילה | 80 מטר |
| סדרה | Prime-III |
